DC Compressor

DC refrigeration equipment is widely used in RV refrigerators, solar refrigerators, mobile snack trucks, car refrigerators, marine refrigerators, pharmaceutical cold chain transportation, tent air conditioners, etc

Availability:

Quantity:



Inquire Add to Basket

Dc Mini Compressor Refrigeration Units Condensing Units Solar Dc Freezer Car Refrigerator

Product Description

Model	Compressor Model	Power Supply	Displacement (CC)	Nominal Capacity(W)				C.O.P	Refrigerant	Motor Type	Compressor N.W.	Units Dimension	Units Net Weight	Units Gross Weight
Model	Compressor Model	(V)	Displacement (CC)	2000RPM	2500RPM	3000RPM	3500RPM	(W/W)	Refrigerant	Motor Type	(KG)	(MM)	(KG)	(KG)

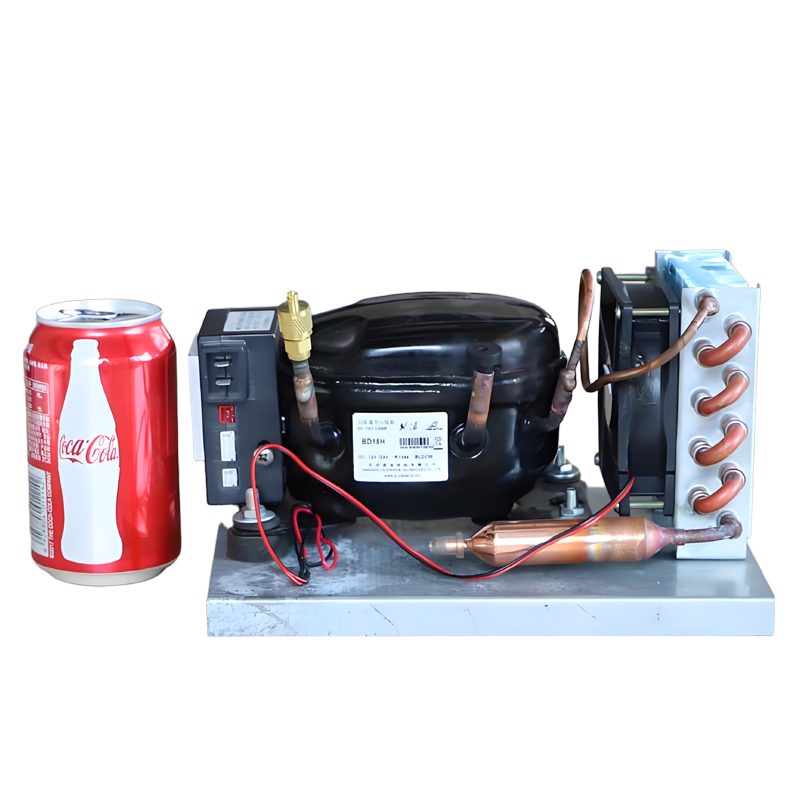

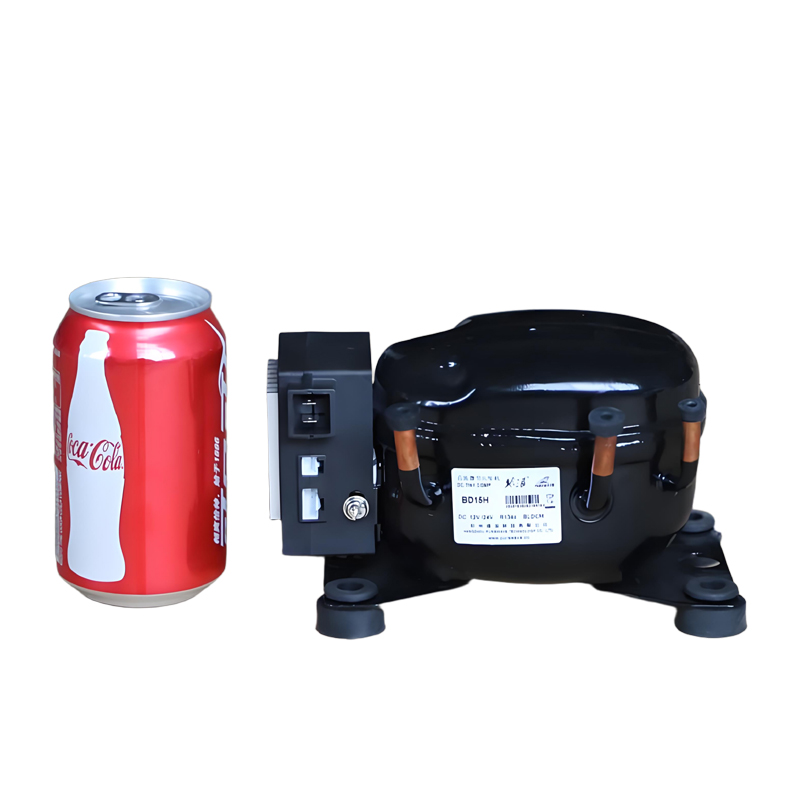

BD15HC	BD15H	12/24/36/48/72	1.5	32	40	48	54	1.2	R134a	BLDCM	1.8	400x180x160	3	3.5

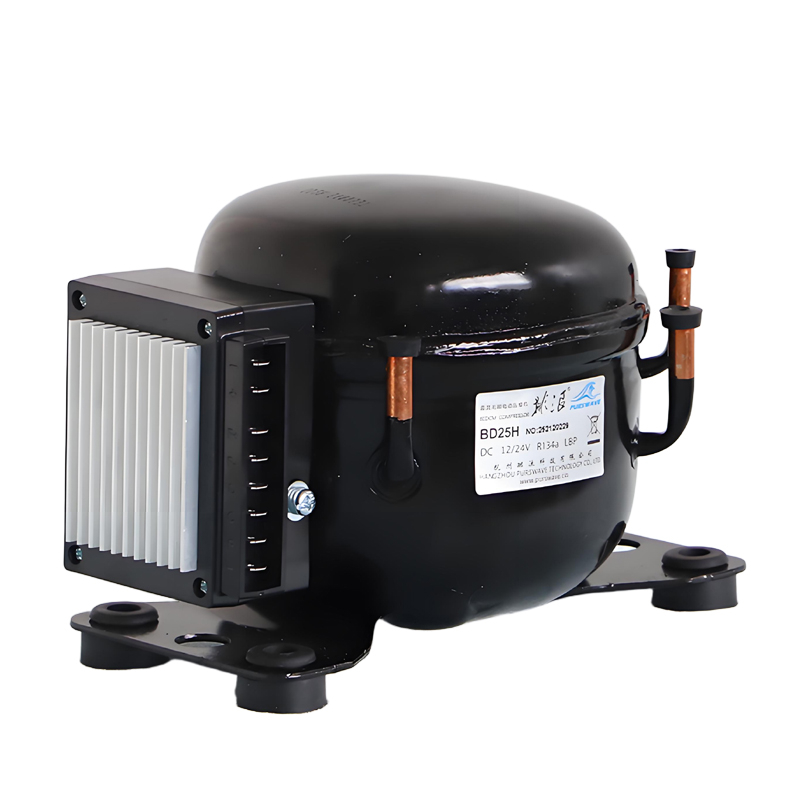

BD25HC	BD25H	12/24/36/48/72	2.5	45	55	65	75	1.2	R134a	BLDCM	3.4	400x180x160	5	6

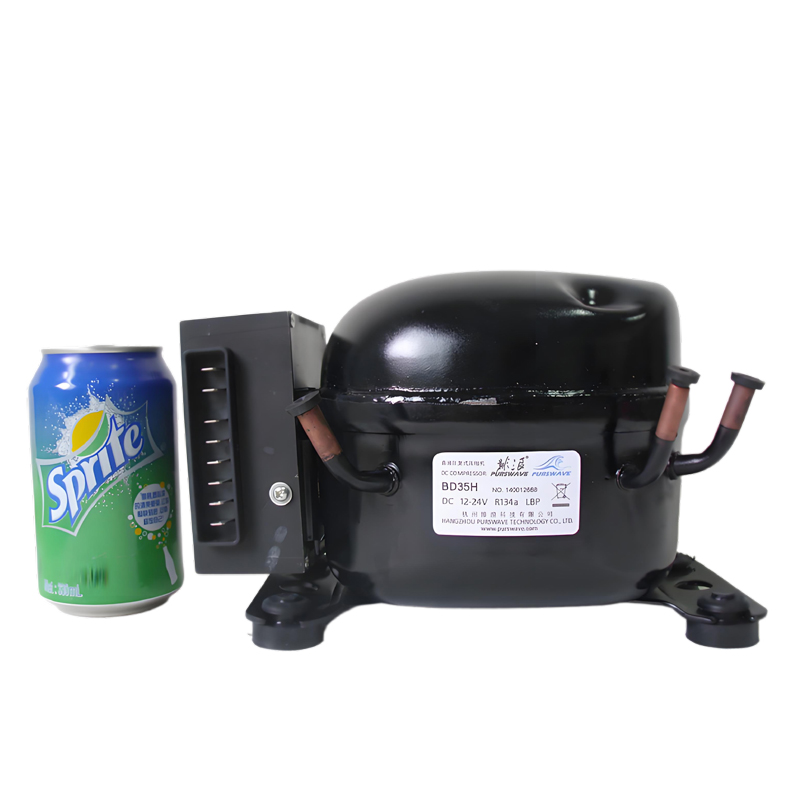

BD35HC	BD35H	12/24/36/48/72	3.5	65	75	85	105	1.2	R134a	BLDCM	3.5	400x180x160	5.5	6
BD45HC	BD45H	12/24/36/48/72	4.5	75	85	95	115	1.2	R134a	BLDCM	4	400x180x160	6	6.5
BD55HC	BD55H	12/24/36/48/72	5.5	90	113	135	158	1.2	R134a	BLDCM	4	400x180x160	6	6.5

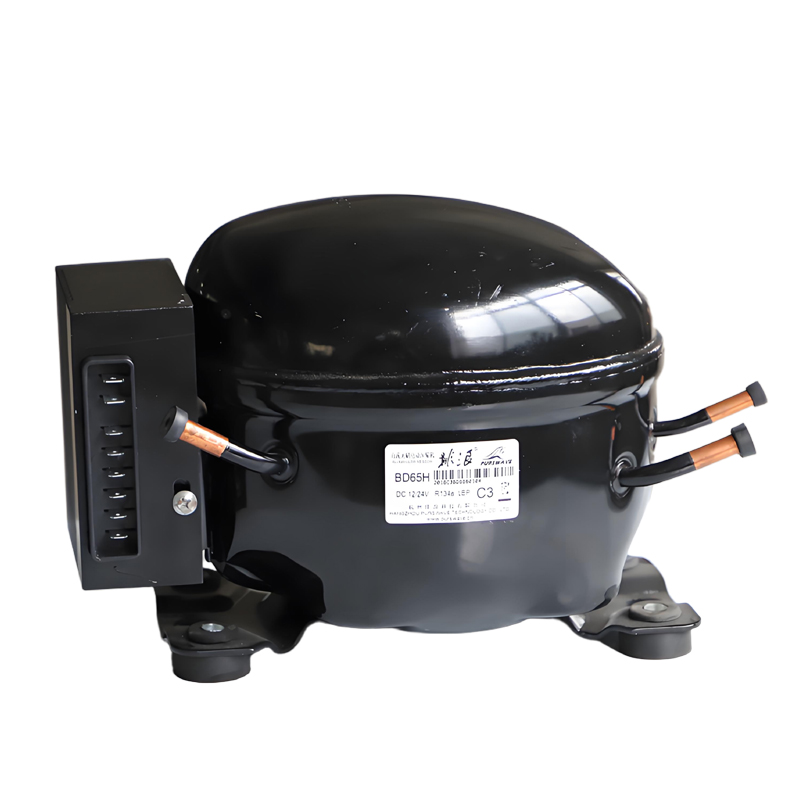

BD65HC	BD65H	12/24/36/48/72	6.5	105	145	180	220	1.2	R134a	BLDCM	5.5	350x350x160	8	9

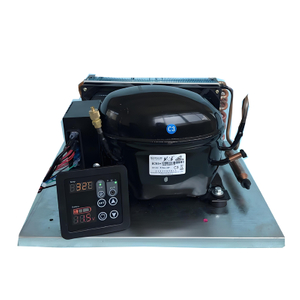

BD75HC	BD75H	12/24/36/48/72	7.5	145	182	218	254	1.2	R134a	BLDCM	5.5	350x350x160	8	9
BD9HC	BD91H	12/24/36/48/72	9.1	160	195	230	270	1.2	R134a	BLDCM	6.2	450x450x160	9	10
